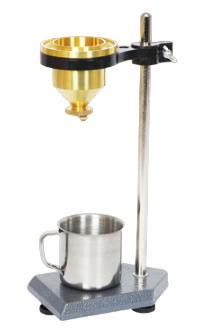

The Coating-4 Cups produced by TRUIT are designed in accordance with GB/T 1723 standard, and is usually suitable for viscosity measurement of products with an outflow time of less than 150 seconds, and the time of outflow from the hole of the specified pore size at a certain amount of specimen and a certain temperature is expressed in seconds (s).
The resulting specimen outflow time t(s)
Convert the kinematic viscosity value μ (mm2/s)
using the following formula:：
At t<23s, t=0.154μ+11
At 23s≤t≤150s, t=0.223μ+6.0
Order Information:
TR 1010/1--T-4 Cup (portable)
TR 1010/2--T-4 Cup (Copper cup+bracket)
TR 1168/1--Electronic stopwatch
·Capacity: 100±1ml
·Inner diameter: φ49.5±0.2mm
·Inner diameter of nozzle hole: φ 4 ± 0.2mm
·Flow hole length: 4±0.02mm
·Inner vertebral body angle: 81°± 15′
