The anti-crack fatigue tester produced by TRUIT is developed and designed according to the standard HG/T 4343 "Water-based Colorful Architectural Coatings" in the "composite coating covering crack ability", which can make the left and right parts of the test plate crack move horizontally or relatively reciprocating, and measure the ability of the surface coating to resist the damage of the coating film caused by concrete cracking by simulating the cracks in actual concrete.

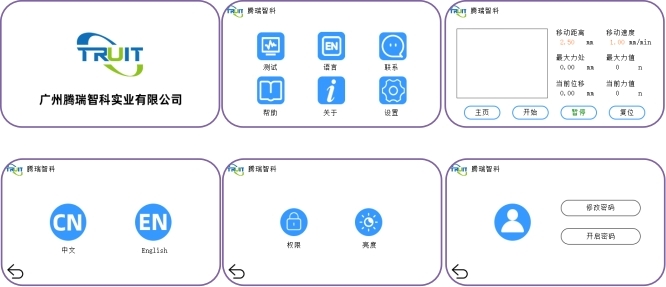

The Interface

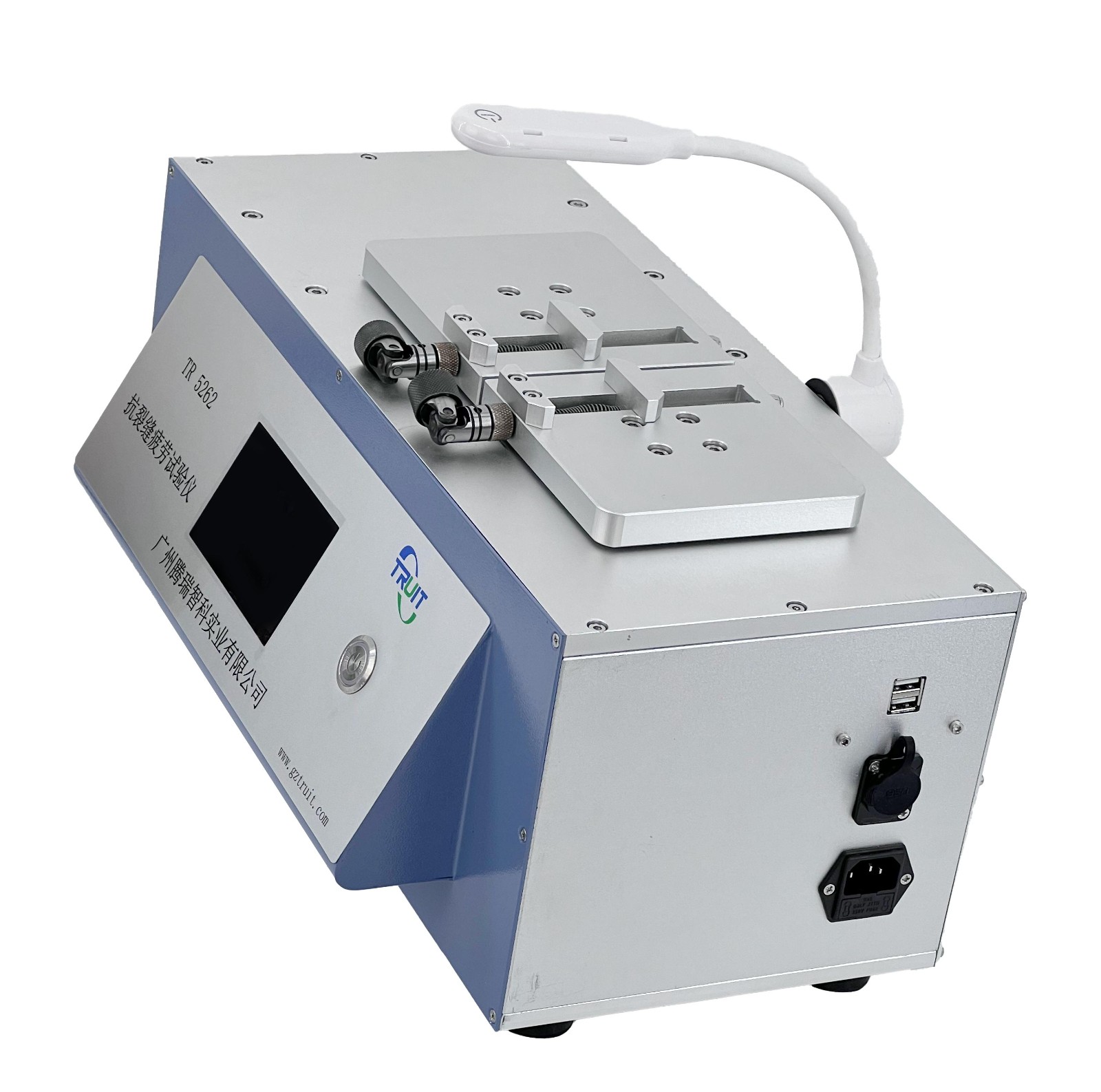

TR 5262 – Anti Crack Fatigue Tester
? Maximum travel distance: 10mm (adjustable)
? Moving distance accuracy: 0.01mm
? Running speed: 0.01mm/mim~20mm/min
? Moving speed accuracy: 0.01mm/min
? Test board size: 120mm*80mm*10mm
? Power supply: 220V
? Touch screen design, easy to operate
Monitor the real-time force of the coating
